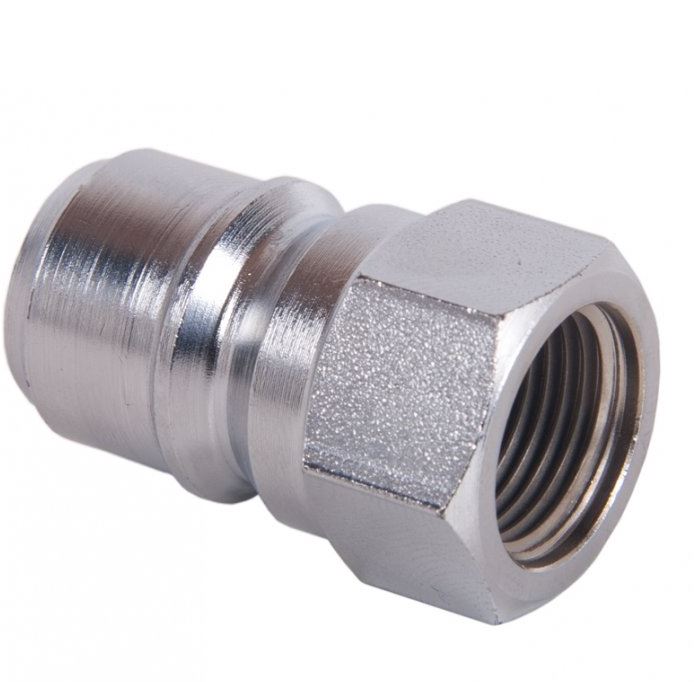

AR31 QR Adaptor – Ref. DA0121730070

• 3/8"BSPF thread
• 280 Bar rated pressure
• 50 Lpm max flow
• 150°C rated temperature
• Chrome plated brass
• ø19.9mm plug
• Compatible w/ AR31 & ARS220/350 couplers

Choosing the right option

Match the thread standard, male or female connection and hose diameter to your existing assembly. Keep the complete system within the lowest-rated component’s operating limits.
